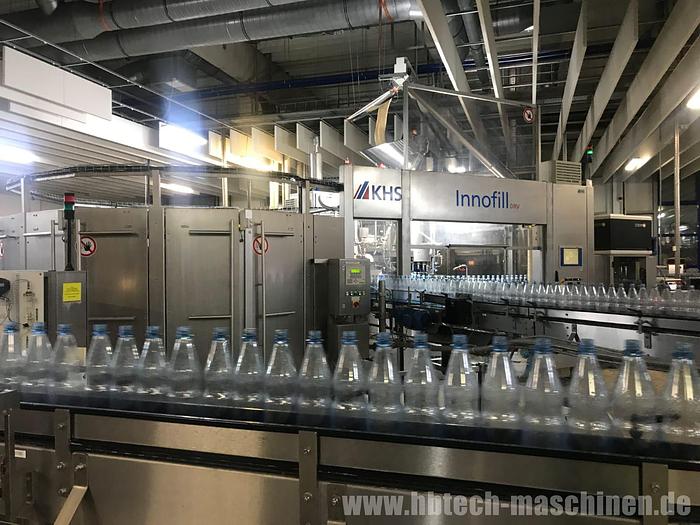

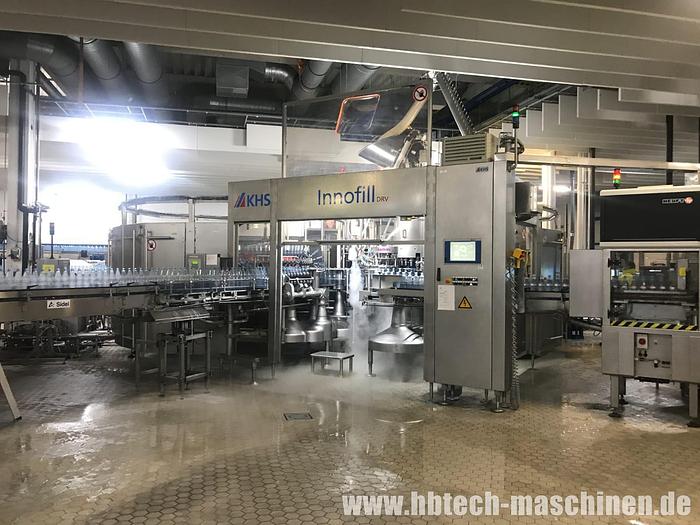

KHS Innofill

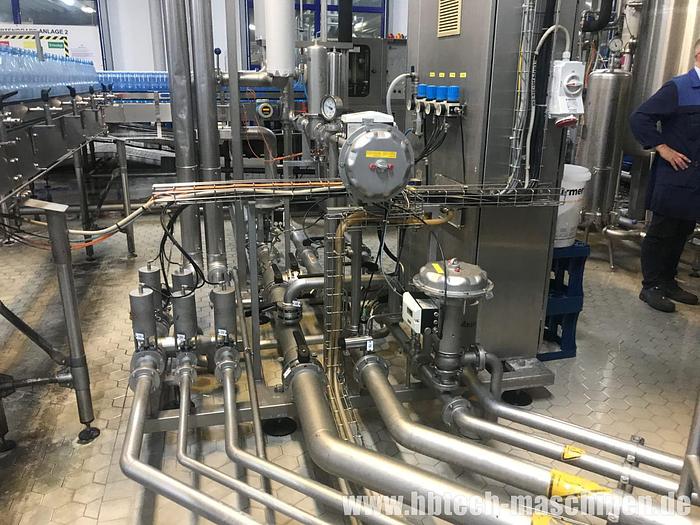

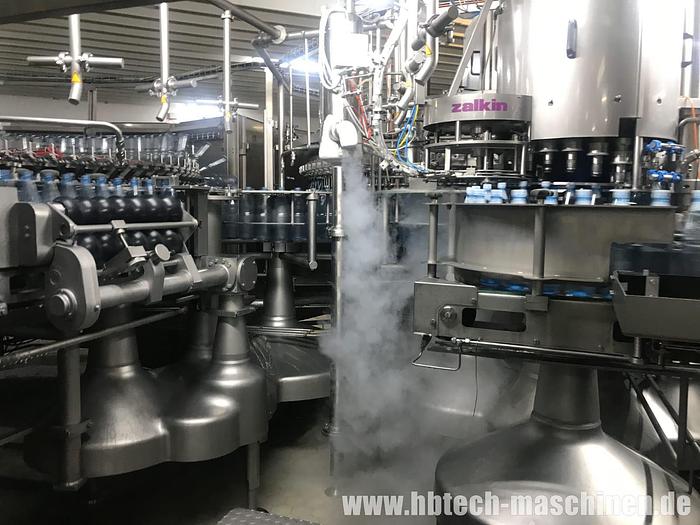

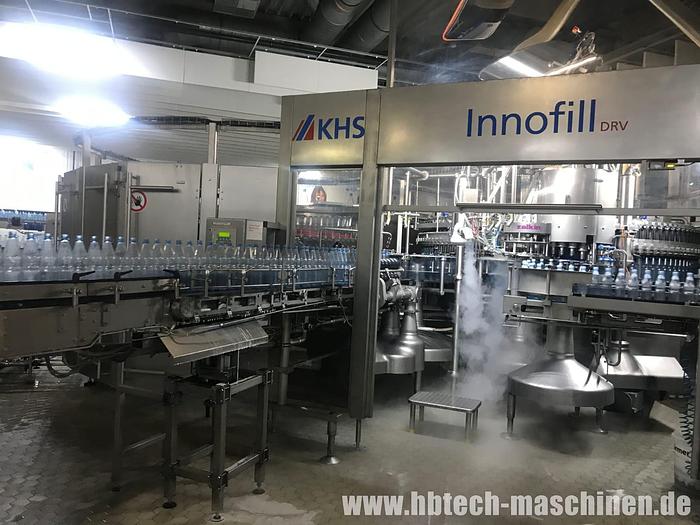

KHS Innofill filling and sealing machine - DRS VF / PET 120/18 SV 30 Working pressure during filling min. 8 bar (Working pressure must be at least 2,0 bar above filling pressure) Usage of working pressured air, no peak usage, per 1000 container 0.32 Nm° This value is divided as: Working air pressure (lift cylinder) per 1000 containers 0.12 Nm* Valve pneumatic per 1000 containers 0.2 Nm* Ventilation of electronic devices 2 Nm*/h Control system of valve pneumatic 2.5 Nm*/h SV-Hopper sterile air consumption 5 Nm*/h Sterile-working pressure 8 bar Water supply gauge pressure min. 5 bar Splinter washout system water consumption - per 30 I process (No continuous operation) PIPING: Nominal size of beverage pipeline 1 00 NW Nominal size of return line 80 NW Nominal size of air supply 25 NW Nominal size of water supply cold/hot water 50 NW Volume ring bowl, total 462 I Volume ring bowl, beverage 230 I All information is indicative. Only the technical data are binding.
